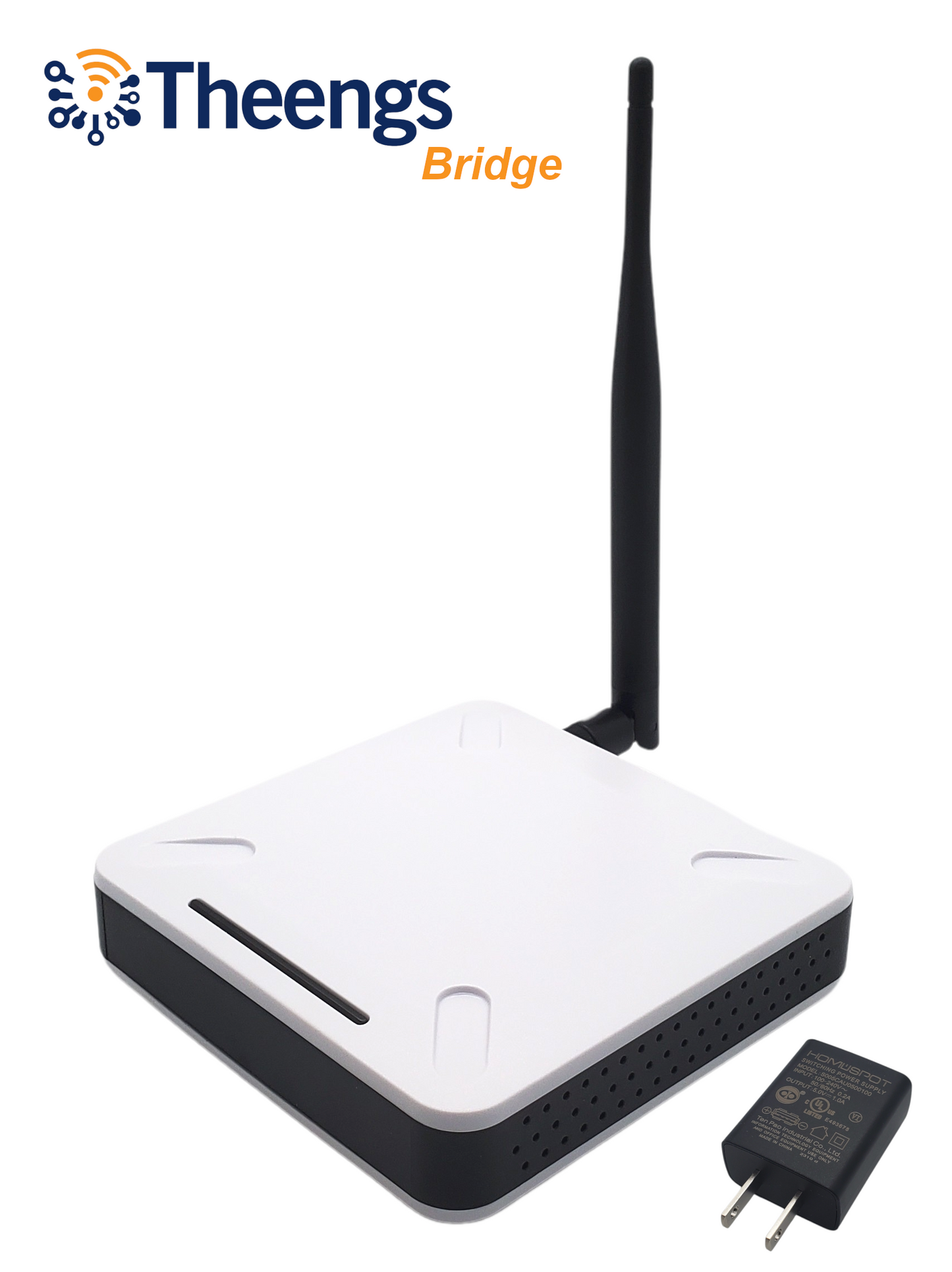

Theengs Bridge - ESP32 BLE MQTT gateway Wifi, Ethernet, external antenna development board

Theengs Bridge - ESP32 BLE MQTT gateway Wifi, Ethernet, external antenna development board

Regular price $54.90 USD
Regular price $59.90 USD Sale price $54.90 USD
Sale Sold out

Theengs Bridge - Your Central BLE Gateway

Powered by OpenMQTTGateway, our Bridge is compatible with over 100 sensors and integrates with Home Assistant, OpenHAB, Jeedom, NodeRed, and other MQTT-compatible systems.

Key Features:

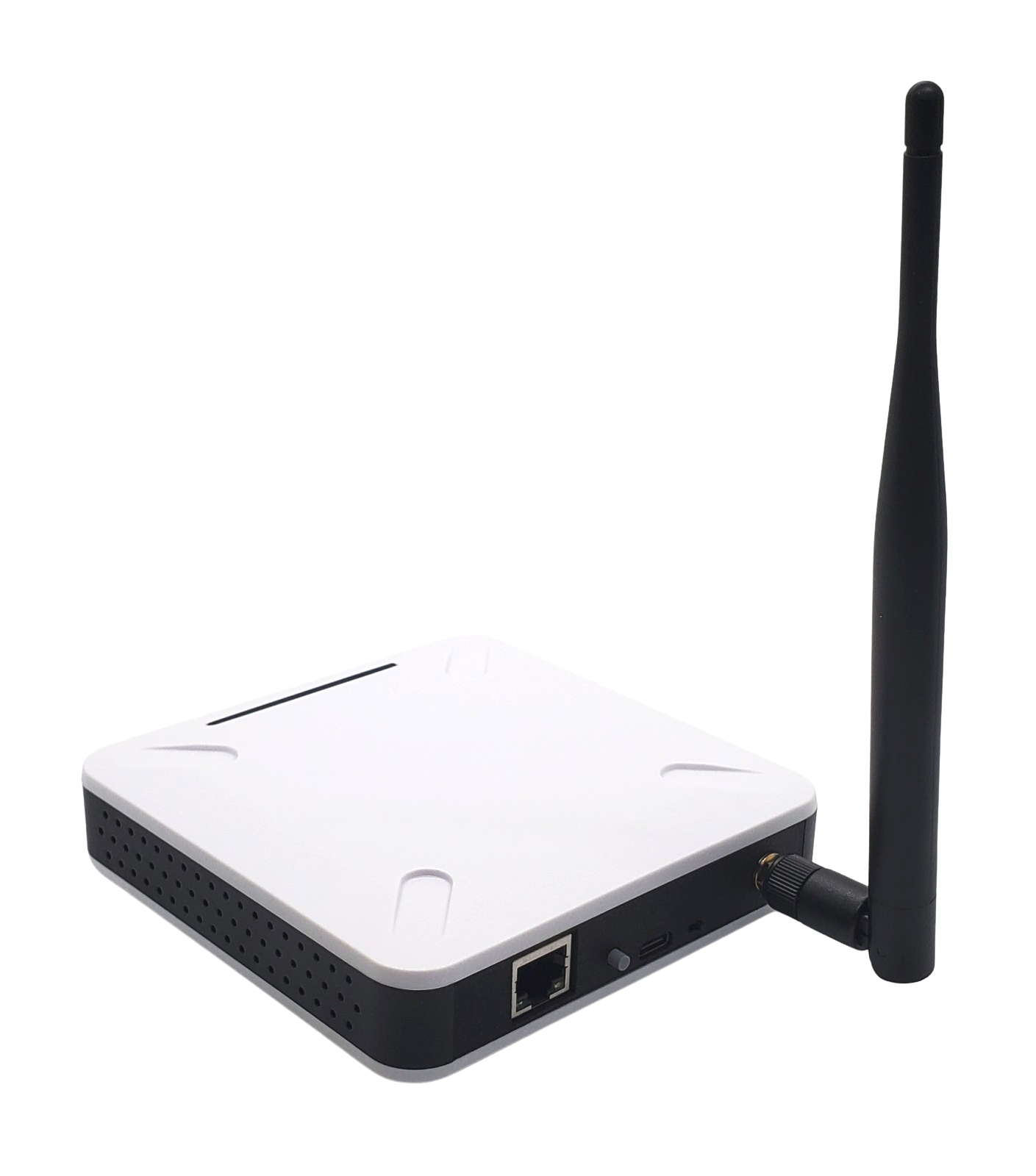

  • External Antenna: Equipped with a 2.4GHz 6dBi antenna, ensuring strong signal reception and reliability.

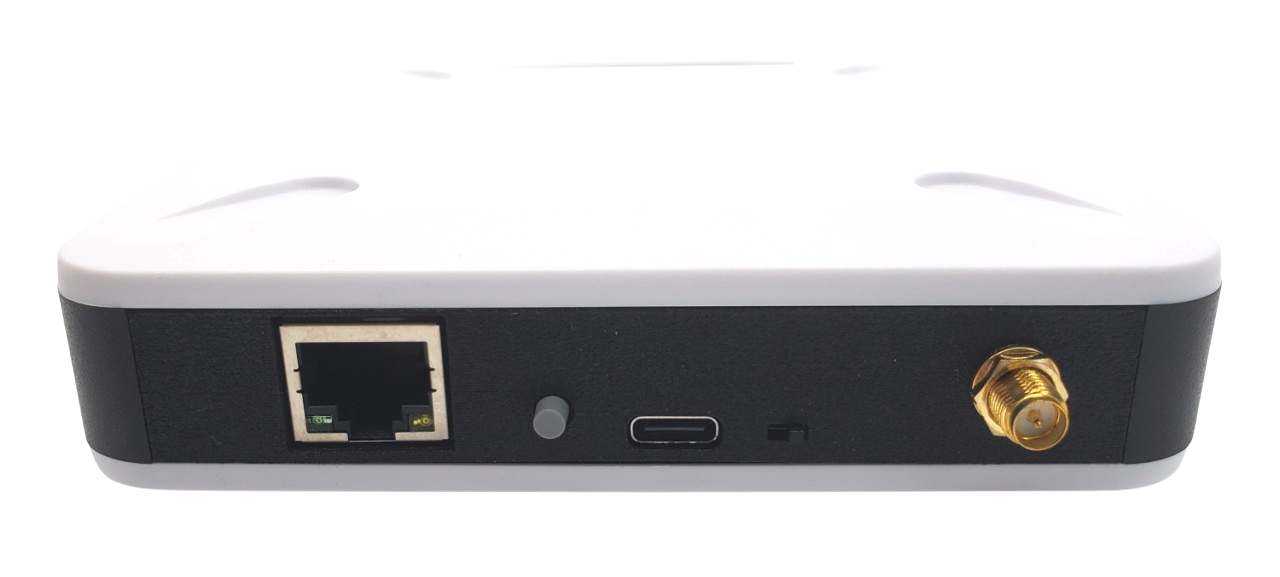

  • Ethernet or WiFi connectivity: Use either Ethernet, WiFi, or Ethernet with WiFi backup.
  • Adaptive Scanning: BLE scanning parameters adapt automatically based on the devices in your space.
  • Auto Discovery: Home Assistant MQTT convention auto-discovery ensures BLE devices are automatically detected and set up with various SmartHome solutions.
  • Over-the-Air Updates: Keep your device updated effortlessly.
Specifications:
Power Supply USB-C 5.0V

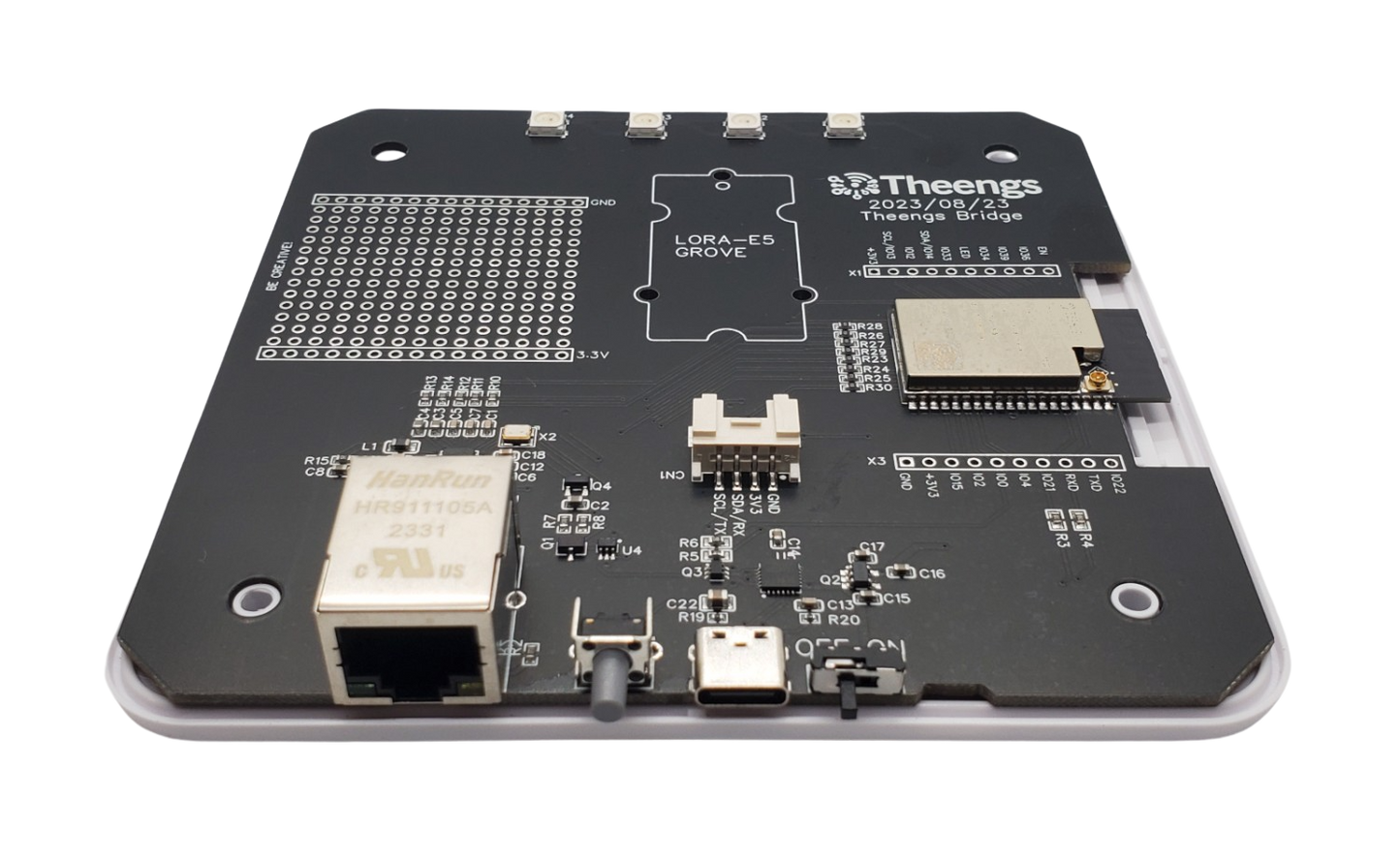

Microcontroller ESP32
Memory 8MB
WiFi Band 2.4 GHz
Protocol MQTT
Ethernet
RJ45
Antenna
2.4GHz 6dBi 50ohm Wireless Antenna
LED 4 RGBs
Board type Development Board
Dimensions

4.05in * 1.37in * 2.4in

160 × 120 × 30 mm (without antenna)


FAQs:

  • What is the warranty period?

The Theengs Bridge hardware warranty lasts for one year from the purchase date. See detailed warranty information here.

  • Does the bridge require internet access?

The bridge checks online for firmware updates but can operate without relying on cloud services (unless specifically configured to connect to one).

  • Can Theengs Bridge operate on WiFi?

Absolutely! Set up a WiFi Access Point during the onboarding process, input your password, and it will default to WiFi if no ethernet connection is available.

    Prerequisites:

    • Ensure you have an MQTT broker. A basic understanding of MQTT is recommended.
    • 5V USB C Power Supply

    Licensing: The bridge firmware is licensed under GPLv3. By using this product, you agree to the terms and conditions of this license.

    User guide: https://tbridge02.theengs.io/

    View full details

    Customer Reviews

    Based on 4 reviews
    75%
    (3)
    25%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    Jim Black
    So far, so good

    Gateway has worked flawlessly for a couple of weeks now. Allows the Shelly Bluetooth devices to populate data into my MQTT broker for further use in my home automation system.

    M
    Maxwell Da Silva Moraes

    Theengs Bridge - ESP32 BLE MQTT gateway Wifi, Ethernet, external antenna development board

    J
    John P.
    UPDATE: Quite Happy (Original Title: Pretty disappointed)

    Update:

    After working with Florian and applying a couple firmware updates everything is working as I had hoped it would. The boot looping has been corrected and the device is very stable now. The Blind Tilts are seen and with the latest dev branch the ability to control them works.

    I wanted to update my review to show the fast progress and response, and I want to leave the original text to show the context of the changes. It's not often small shops selling niche products like this are able to respond to issues as I've experienced here and I hope others interested in this product see this and will see that if they do have issues, at least a genuine attempt to correct them will be made if not a full solution provided.

    --
    Original rating was 2 stars, this was my text:

    I intended to keep trying to find a way to make this work, but it's not working as I'd hoped.

    Biggest problem is it works for a couple hours then goes into some sort of boot loop. I've reset a couple times, just let it sit, and it dies.

    Even when it is working, it's not seeing my SwitchBot Blind Tilts, which was the whole point for me.

    Like I said, I intend to keep trying to get this work at some level but have low expectations.

    Also, the box has a QR code and a written out link for the manual. It's wrong.

    Thank you for updating the review and sharing your experience! I'm glad to hear that the firmware updates resolved the issues.
    I also want to express my gratitude for supporting open source development with your purchase and feedback. Your input helps us improve and benefits other users as well.
    If you need any further assistance, feel free to reach out.

    J
    Jörn Daub
    Great bluetooth bridge for Home Assistant

    I needed a bluetooth bridge for Home Assistant which I could place closer to the car than my HA server. This device worked like a charm.

    The only thing I wish is that it had PoE so that I could run just one cable to the device. (you can have just one cable, but that would be USB-C as power supply and then use WiFi instead of the Ethernet port, but I like cable Ethernet for its reliability)
